Configuration

Connectors

3min

Connectors allow the solution to connect to external solutions. The connectors are each their own microservice and leverage the L4i API interfaces to allow connection details and methods to be described to the core solution.

Adding a Connector

Select the 'Connectors' tab, then click the '+' button

Enter the URL to the connector endpoint using HTTPS and providing the port

In default installations localhost or loopback addresses can be used. In advanced configurations where connectors are deployed on remote servers, the remote machine address/name should be used:

https://127.0.0.1:42420
https://localhost:42420
https://<remoteconnectorserver>:42420

Note: that 127.0.0.1 is a loopback ip4 address - the same as using localhost. This indicates the connector is running on the same machine as the L4i core services.

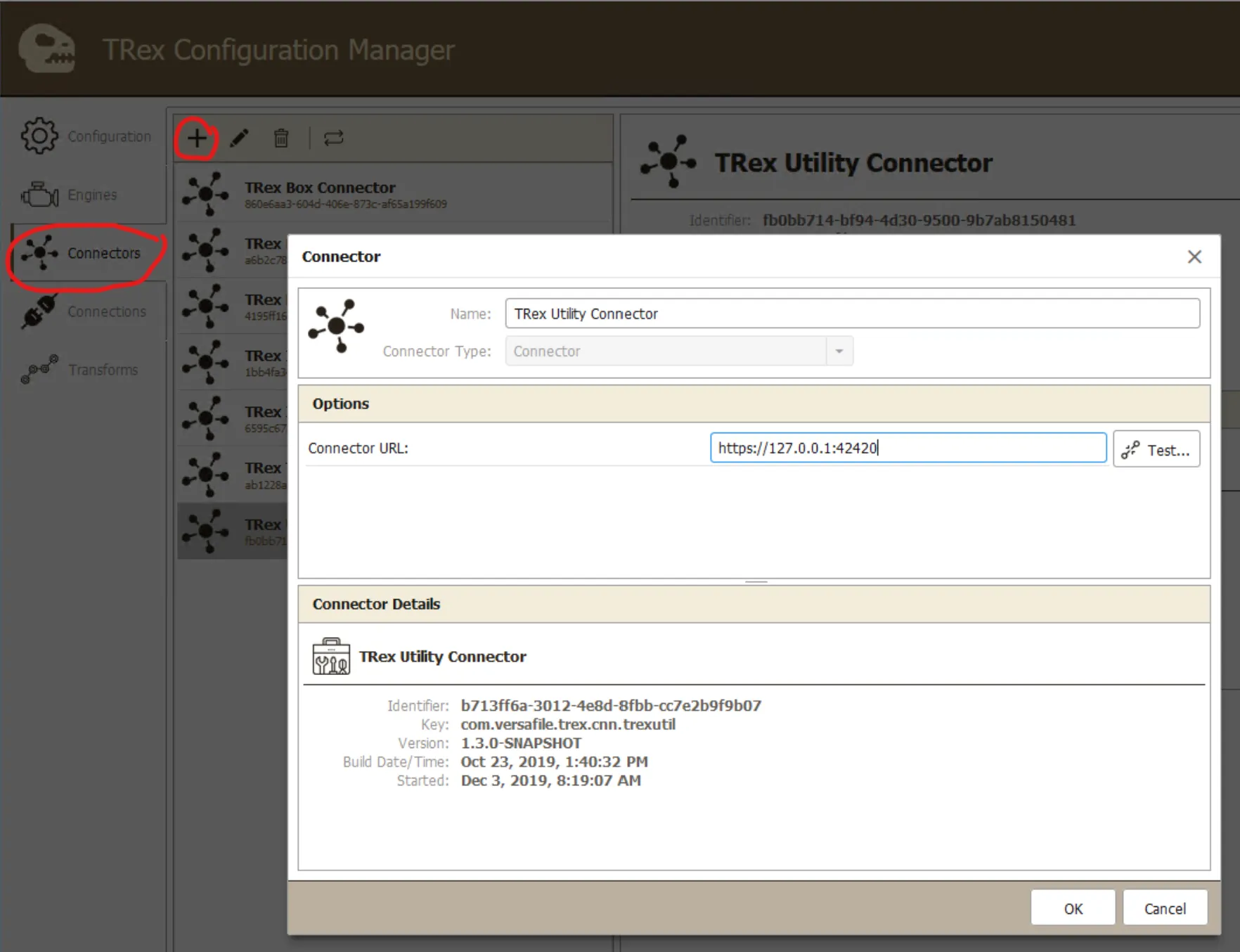

Document image


The default ports for the connectors assigned in the d4i configuration are listed in the table below:

TRex Utilities

42420

Filesystem

42421

IBM FileNet P8 Content Engine

42422

Apache Tika

42423

IBM Watson Cloud Services

42424

Elasticsearch

42425

IBM FileNet P8 Process Engine

42426

Box Cloud Content Management

42427

IBM Content Manager CM8

42429

IBM Forms Server

42430

Microsoft SharePoint

42431

Generic Web Services

42432
