Metadata Search
This method will perform a Box search against one or more Enterprise metadata fields.
NOTE: Only content that the authenticated user has access to (items they can preview and/or view) will be returned in the search results.
Input Parameters:
- Parent Folder ID: (Optional) A folder(s) to constrain the search against. Otherwise it will search against all content the configured connection has access to
- Item Type: Allows for return of Files, Folders or Both
- Limit: Maximum number of files returned in the query
- Metadata Template Key: The Box API metadata template key to search against
- Query Expression: This is the Box API Query that will be run.
- For this example the value is: claimNumber = :claimNumberVal
- claimNumber is the metadata field that is part of the Metadata Template Key defined previously
- = is the operator (equals) - see the online Box API documentation for additional operators supported for each data type
- :claimNumberVal - The colon is required and the claimNumberVal is a user created parameter that will be passed in at run time

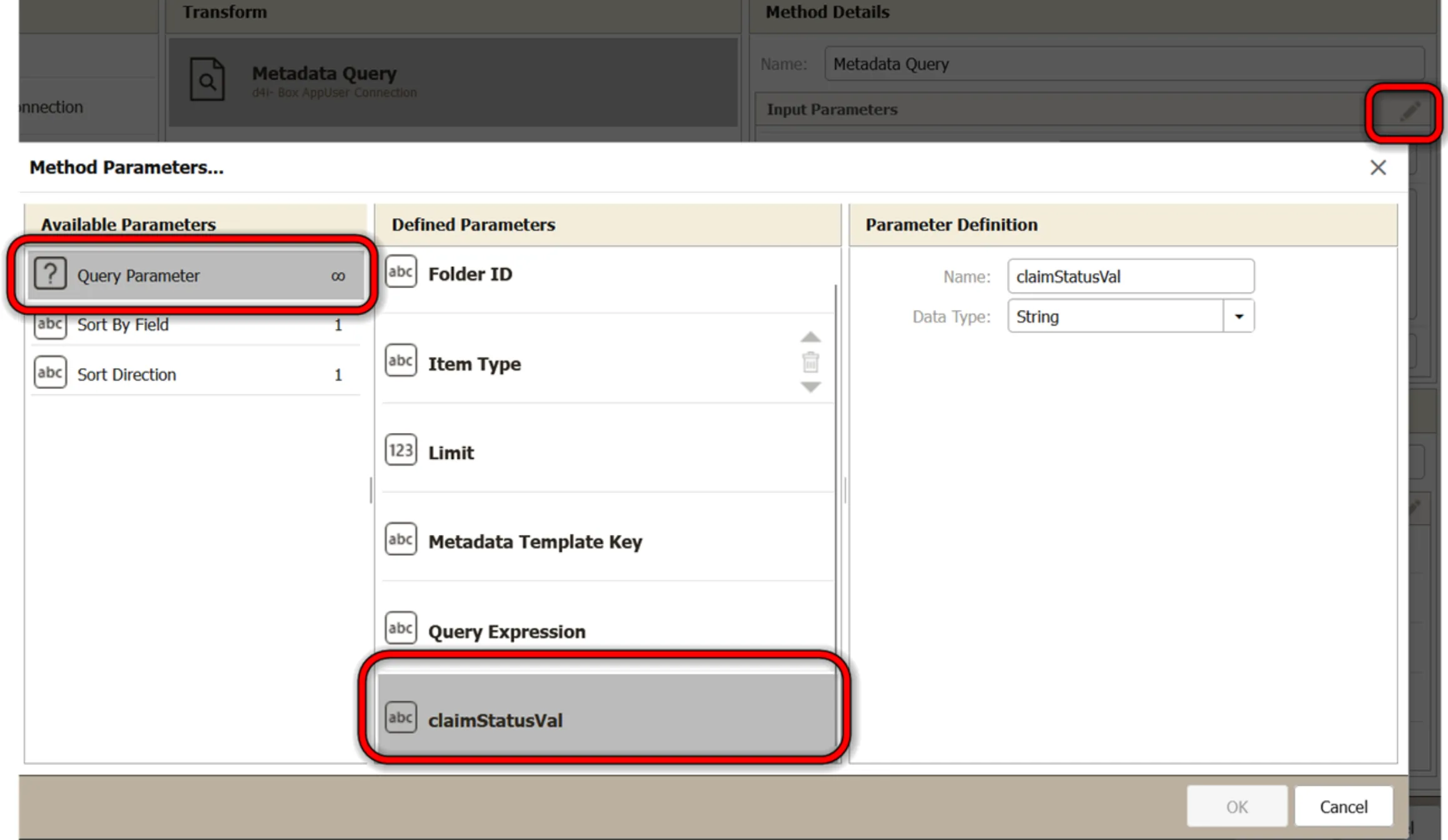

- To supply any user created run time parameters, click on the pencil in the top right of the Input Parameters section and create a new 'Query Parameter'. In this example the claimNumberVal was created to match the value used in the Query Expression box.
- Optionally a Sort By Field and Sort Direction can be included - NOTE the values are not changed on this screen but back in the main method screen
- Sort By Field: use the metadata template value to sort by
- Sort Direction: choose Ascending or Descending in the dropdown
Output Entity:
This section allows for configuration any metadata fields that should be returned into the pipeline for processing. Click on the pencil icon in the Output Entity section.
- Once in the Entity Attributes screen, drag an Enterprise Metadata Value from the left into the center secion
- Name: what you would like it to display as in the attribute list
- Binding: the exact value of the Box metadata template value (i.e. claimNumber)
- Click 'Convert Data Type' and choose the converted data type value of the Box metadata template

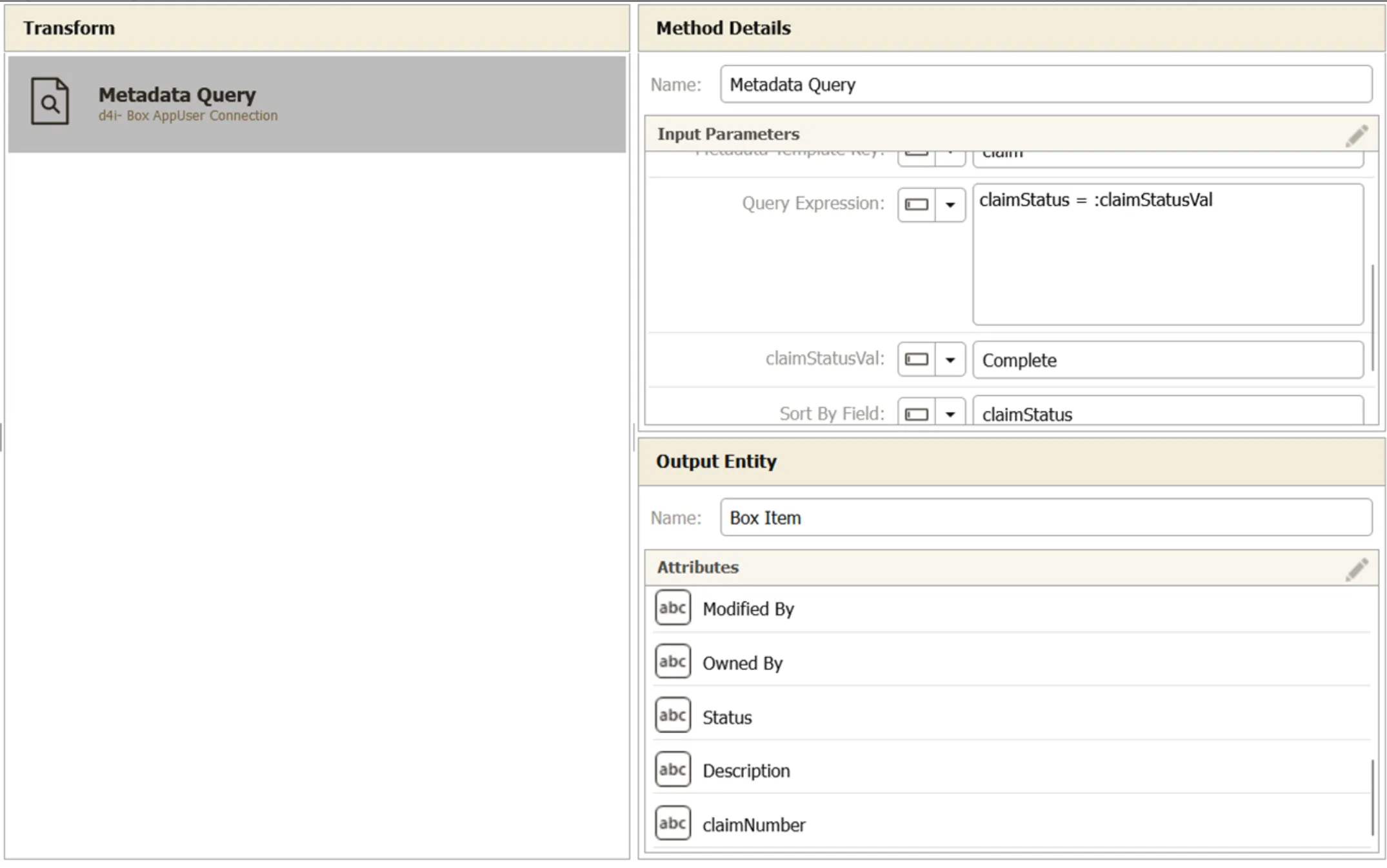

The following screenshot shows an example of a configured Metadata Search method:
This will search Box for all documents where the metadata template 'claim' field 'claimStatus' has a string value of Complete. It will then sort on claimStatus and the resulting set of documents will also include the metadata values for 'claimNumber'
